UL 498 Plugs and Socket Outlets Gauge

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-UL498

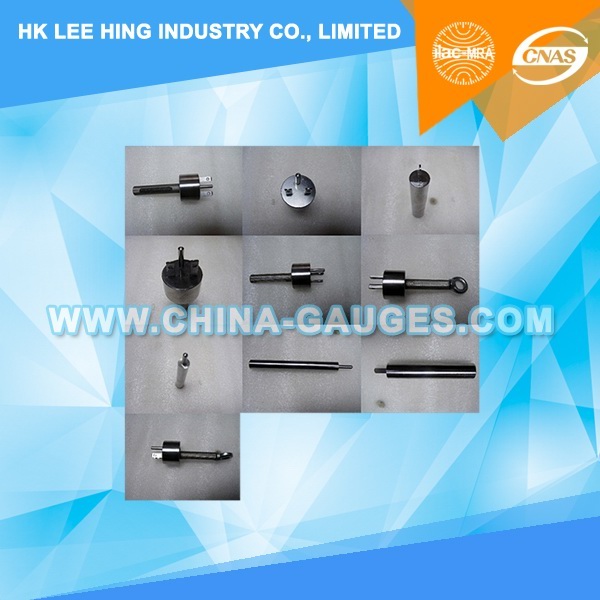

UL 498 Plugs and Socket Outlets Gauge


1.  Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498 standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.


3. Specifications:

1 UL498-figure9.1 Articulate   probe with web stop
2 UL498-figure10.1 Prode
3 UL498-figure31.1 Flat prode
4 UL498-figure69.1 Reference   plug
5 UL498-figure94.1 Impoper insertion test blades
6 UL498-figure105.1 Test plug
7 UL498-figure105.2 Test blade
8 UL498-figure118.1 Receptacle   test fixture
9 UL498-figure118.3 Push out   tool
10 UL498-figure118.5 Bridge
11 UL498-figure119.1 Test pin A
12 UL498-figure119.2 Test pin B
13 UL498-figure119.3 57g ground   pin
14 UL498-figure119.4 113g ground   pin
15 UL498-figure129.2 No.14AWG   test pin
16 UL498-figure132.1 Test probe
17 UL498-fig132.2 Testprobe
18 UL498-figure144.2 Fixture for assembly security   test
19 UL498-figureSD13.2 Over size   ground pin
