Spray Nozzle IEC 60529 IPX3 IPX4

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-IPX34H

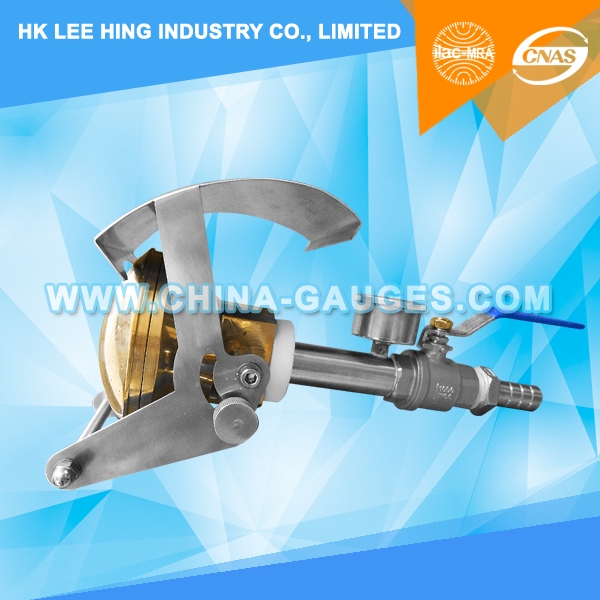

Spray Nozzle IEC 60529 IPX3 IPX4


It's strictly designed according to IEC60529 Figure 5, Used to test the waterproof performance of appliance and electric appliance with the rain protection function.


The IPX3 IPX4 Hand-held Spray Nozzle intended for use on specimens that will not fit within the diameter of the Oscillating Tube Tester.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.






Water  supply

Water  flow rate is 0.05 ~ 0.15 Mpa clean water without inclusion.


Spray  nozzle parameters

External  diameter: Ф102 mm

spherical diameter: SФ75.5 mm

There is a middle hole and There are 24 holes in the internal circle of holes  of which the included angle is 30°.  There are 96 holes in the external circle of holes of which the included  angle is 15°. 121 holes in total.

The hole diameter: Ф0.5 mm

It is made of brass.



IEC60529  IPX3 IPX4.





Pressure  gauge



Site  requirements

Dedicated  IP waterproof test room, The ground should be flat with illumination, With  good function of inflow and drainage.
